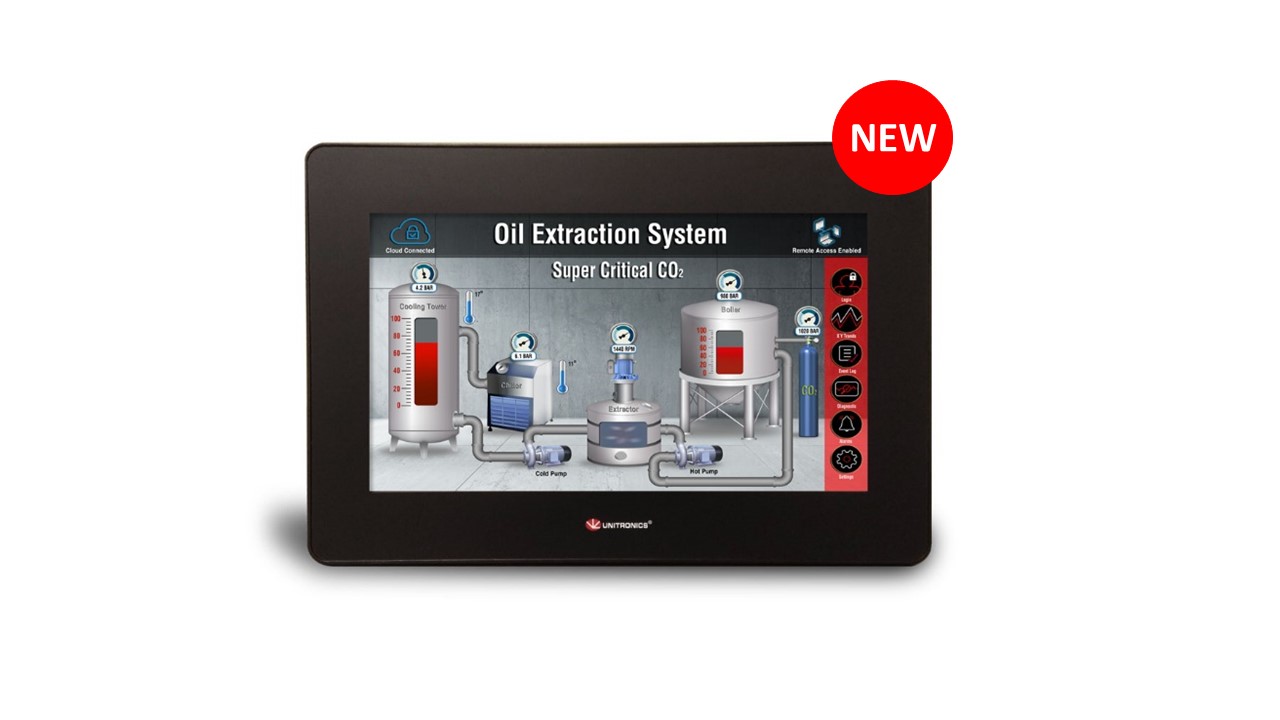

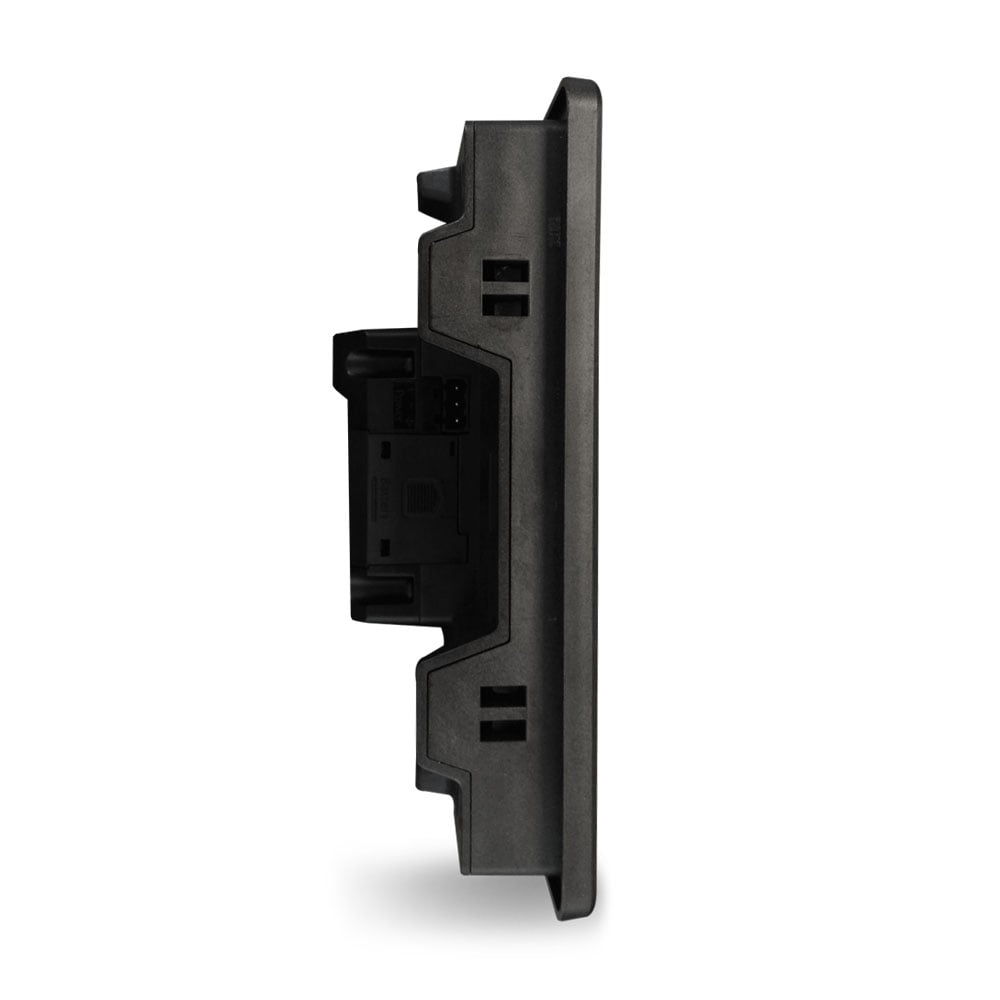

UniStream® 10.1" Built-in:
PLC Controller + HMI + I/Os

Multi-function PLC  with an integrated, high quality HMI touch screen, available in a range of built-in I/O configurations. The highly compact hardware profile, PLC+HMI+I/Os built into a one unit, offers powerful control capabilities in an incredible space-saving configuration.

UniStream 10.1″ main features include Ethernet/IP, VNC, FTP, Web Server, Video + RTSP, SQL Client and more. It is backed by the most efficient programming software you have ever used.

Available in UniStream 10.1″ Cloud series – a PLC with built-in, no-cost cloud services. You simply connect the PLC to ‘UniCloud’, Unitroncis cloud service, design a no-code dashboard, and go live in less than 30 minutes!

Powerful PLC Controller + HMI Overview

PLC

  • Auto-tune PID, up to 64 independent loops
  • Recipes & data logging via data tables & sampling
  • MicroSD card – log, backup, clone & more
  • Function Blocks & Structs
  • Trends

HMI

  • High quality touchscreen
  • Multi-language display
  • Built-in Alarm Screens
  • Media support: Video*, Audio* and PDF viewer
  • Multi-level password protection –easy and fast



* For 10.1″ Pro only

Communication

  • Ethernet TCP/IP
  • USB host
  • Mini USB for programming
  • RS485
  • RS232
  • Add-on ports: CANbus, RS485, RS232

          Protocols:

  • MQTT Client
  • EtherNet/IP
  • MODBUS TCP
  • CANopen, CANlayer2, UniCAN
  • SNMP
  • BACnet, KNX and M-Bus via gateway
  • Message Composer for 3rd party protocols

        General Features: SQL Client*, Web Server*, E-mail & SMS, Remote access via VNC, FTP server & client, 3G Modem                                                        support

  * For 10.1″ Pro only

I/O

UniLogic® Software for UniStream®

All-in-One – program all aspects of your application:

  • Code Ladder
  • Design beautiful HMI screens and Web pages
  • Configure hardware
  • Set up and implement communications
  • Build-it-once, create & reuse Ladder functions, screens, webpages and more

Product Details

UniStream® 10.1"
I/O Options
Number of I/Os (Built-in, local and remote)Up to 2,048 I/O points
Built-in I/O or Uni-COM ModulesAccording to model and add-on model (see table below)
Local Uni-I/O™ ModulesTo add local I/Os, use UAG-CX I/O Expansion Adapters. These adapters provide the connection point for standard UniStream Uni-I/O™ modules
Remote I/O ExpansionUse EX-RC1 adapters to further extend the number of I/Os 1
Bit Operation0.13 µs
Ladder Memory1 MB
External MemorymicroSD and USB Flash drive (up to 32GB)
Data speed: up to 200mbs
VideoShow MPEG-4 videos on the HMI screen3
AudioStereo MP3 filesscreen3
Power Supply24VCD (B1 support 12V/24VDC)
Backup BatteryCR2032, Back-up RTC values, system data and retained tags
Communication
Ports1 Ethernet •1 USB host • 1 USB device for programming
ProtocolsMODBUS, EtherNet/ IPTM, CANopen, SNMP, FTP, BACnet2, RTSP, VNC, UniCAN, GSM (SMS, GPRS), KNX2, Message Composer for 3rd party protocols.
SQL Client & Web Serverscreen3
HMI Panel
TypeTFT, LCD, Touch HMI Panel
Size10.1” (16:9)
Resolution1024 X 600 (WSVGA)
Viewing Area
Height x Width (mm)		Width x Height (mm) 222.72 x 125.28
Colors65,536 (16bit)
Display Backlight IlluminationWhite LED
Environment
ProtectionFront face : IP65/66, NEMA 4X
Rear side: IP20, NEMA1
Operating Temperature-20°C to 55°C (-4°F to 131°F)
*Notes:
  1. EX-RC1: via CANbus integrate standard Unitronics’ I/O modules at distances of up to 1000m.
  2. Using a gateway model
  3. For UniStream 10.1 ” Pro only

Close

UniStream 10.1" Built-in I/Os

Inputs 1Outputs
ArticleSummaryDigital
(Isolated)
HSC/Shaft-encoder *1
AnalogTemperature
inputs, RTD/TC
Transistor *2
(Isolated)
PWM *2
RelayAnalogOperating
Voltage
US10-x5-B1
US10-x10-B1		No built-in I/OsNoneNoneNoneNoneNoneNoneNoneNone12/24VDC
US10-x5-TR22
US10-x10-TR22		10 Digital,
2 Analog Inputs,
2 Transistor outputs, npn, including 2 PWM outputs.
8 Relay outputs		10
Sink/Source		None2
0-10V, 0-20mA,
4-20mA
12-bit		None2
Sink (npn)		2
30kHz		8
None24VDC
US10-x5-T24
US10-x10-T24		10 Digital,
2 Analog Inputs, 12 Transistor outputs, pnp, including 2 PWM outputs.		10
Sink/Source		None2
0-10V, 0-20mA,
4-20mA
12-bit		None12
Source (pnp)		2
3kHz		NoneNone24VDC
US10-x5-RA28
US10-x10-RA28		14 Digital,
including 2 HSC,
2 Analog Inputs,
2 Temperature inputs,
8 Relay outputs,
2 Analog outputs
14
Sink/Source


2
90kHz 32-bit



2 (isolated)
0-10V, 0-20mA, 4-20mA
14-bit		2 (isolated)
Thermocouple,
PT100/NI100/NI120/
PT1000/NI1000		NoneNone82
0-10V,12-bit, ±10V
11-bit+sign
0-20mA, 4-20mA
12-bit		24VDC

US10-x5-TA30
US10-x10-TA30		14 Digital inputs, including 2 HSC,
2 Analog inputs,
2 Temperature inputs,
10 Transistor outputs, pnp, including 2 PWM outputs,
2 Analog outputs		14
Sink/Source		2
90kHz 32-bit		2 (isolated)
0-10V, 0-20mA, 4-20mA
14-bit		2 (isolated)
Thermocouple,
PT100/NI100/NI120/
PT1000/NI1000		10
Source (pnp)		2
3kHz		None2
0-10V,12-bit, ±10V
11-bit+sign
0-20mA, 4-20mA
12-bit		24VDC

US10-x5-R38
US10-x10-R38		24 Digital inputs, including 4 HSC,
12 relay outputs		24
Sink/Source		4
90kHz 32-bit		2
0-10V, 0-20mA,
4-20mA
12-bit		NoneNoneNone12None24VDC

US10-x5-T42
US10-x10-T42		24 Digital inputs, including 4 HSC,
2 Analog inputs,
16 Transistor outputs, pnp, including 2 PWM outputs		24
Sink/Source		4
90kHz 32-bit		2
0-10V, 0-20mA,
4-20mA
12-bit		None16
Source (pnp)		2
3kHz		NoneNone24VDC

US10-x5-TA32

US10-x10-TA32		13 Digital inputs, including 2
HSC,
6 Analog inputs,
2 Temperature inputs,
8 Transistor outputs, pnp,
including 2 PWM outputs,
3 Analog outputs		13-Sink / Source2
90kHz 32-bit		2 (isolated)
0-10V, 0-20mA,
4-20mA,
14-bit
4 (non-isolated)
0-10V, 0-20mA,
4-20mA,
12-bit		2 (isolated)
Thermocouple,
PT100/NI100/NI120/
PT1000/NI1000		8
Source (pnp)		2
3kHz		-3
0-10V,12-bit, ±10V
11-bit+sign
0-20mA, 4-20mA
12-bit		24VDC
*Notes:
  1. Note that the high-speed inputs are included in the total number of digital inputs.
  2. Note that the PWM outputs are included in the total number of transistor outputs.

Close

Uni-I/O™ Modules

InputsOutputs
Expansion Modules
article		Digital (Isolated)HSC/Shaft-encoder 4AnalogTemperature
Measurement		Weight
Measurement		Transistor (Isolated) 5PWM/HSO 5RelayAnalogOperating
Voltage
Digital Modules
(Isolated)		UID-160016
Sink/Source		NoneNoneNoneNoneNoneNoneNoneNone24VDC
UID-0808T8
Sink/Source		NoneNoneNoneNone8
Source(pnp)		NoneNoneNone24VDC
UID-W1616T 316
Sink/Source		NoneNoneNoneNone16
Source(pnp)		NoneNoneNone24VDC
UID-0808THS 18
Sink/Source		2
250kHz 32-bit		NoneNoneNone8
Source(pnp)		2 2
250kHz
2
3kHz		NoneNone24VDC
UID-0016TNoneNoneNoneNoneNone16
Source(pnp)		NoneNoneNone24VDC
UID-0808R8
Sink/Source		NoneNoneNoneNoneNoneNone8None24VDC
UID-W1616R 316
Sink/Source		NoneNoneNoneNoneNoneNone16None24VDC
UID-0016RNoneNoneNoneNoneNoneNoneNone16None24VDC
Analog and TemperatureUIA-0006NoneNoneNoneNoneNoneNoneNoneNone6
0-10V
14-bit
±10V
13-bit+sign
0-20mA, 4-20mA
13-bit		24VDC
UIA-0402NNoneNone4
0-10V, 0-20mA, 4-20mA
13-bit
NoneNoneNoneNoneNone2
0-10V
14-bit
±10V
13-bit+sign
0-20mA, 4-20mA
13-bit		24VDC
UIA-0800NNoneNone8
0-10V, 0-20mA, 4-20mA
13-bit
NoneNoneNoneNoneNoneNoneNot relevant
UIA-0800NHNoneNone8
0-20V, 0-20mA, 4-20mA
With HART communication
NoneNoneNoneNoneNoneNoneNot relevant
UIS-04PTNNoneNoneNone4
PT100/NI100/NI120
NoneNoneNoneNoneNoneNot relevant
UIS-04PTKNNoneNoneNone4
PT1000/NI1000/NI1200
NoneNoneNoneNoneNoneNot relevant
UIS-08TCNoneNoneNone8 (Isolated)
Thermocouple7		NoneNoneNoneNoneNone24VDC
Digital/Analog ModulesUIS-WCB1 1 , 3 10
Sink/Source		2
10kH z 32 bit		2 (Isolated)
0-10V, 0-20mA, 4-20mA
14-bit		2 (Isolated)
Thermocouple, PT100/NI100/NI120
None2 (Not Isolated)
Sink (npn)		2
250kHz		82
0-10V
14-bit
.±10V
13-bit+sign
0-20mA, 4-20mA
13-bit		24VDC
UIS-WCB2 1 , 3 10
Sink/Source		2
10kH z 32 bit		2 (Isolated)
0-10V, 0-20mA, 4-20mA
14-bit		2 (Isolated)
Thermocouple, PT100/NI100/NI120
None8
Source (pnp)
2 (Not Isolated)
Sink (npn)		2
250kHz
(Sink outputs only)		None2
0-10V
14-bit
.±10V
13-bit+sign
0-20mA, 4-20mA
13-bit		24VDC
*Notes:
  1. This module utilizes two high speed blocks that can each be assigned either to the inputs or to the outputs.
  2. 2 outputs are high speed, up to 250KHz , and may function as normal or high-speed PWM outputs (same frequency and different duty-cycles). 2 outputs are normal speed, and may function as normal-speed PWM outputs (same frequency but different duty-cycles).
  3. 1 wide I/O modules width = 1.5 slim I/O modules width
  4. Note that the high-speed inputs are included in the total number of digital inputs.
  5. Note that the high-speed outputs are included in the total number of digital outputs.

Close

IO-Link Masters and Hubs Modules

Part NumberDescription
ULK-EIP-4AP6IO-LINK MASTER,4A,EIP,IP67
ULK-EIP-8AP6IO-LINK MASTER,8A,EIP,IP67
ULK-EIP-4A4BP6IO-LINK MASTER,4A4B,EIP,IP67
ULK-1616P-M2P6IO-LINK HUB,16I/O,PN,M12,IP67
ULK-0808P-M8P6IO-LINK HUB,8I/O,PN,M8,IP67
ULK-1616P2-M2P6IO-LINK HUB,16I/O,PN,2A,M12,IP67
ULK-0808AIO-M2P6IO-LINK HUB,8AI/O,PN,M12,IP67

Close

UniStream Remote I/O

ArticleDescription
AdapterURB-TCPUniStream Remote IO Eth. Adapter
URB-TCP2UniStream Remote IO Adapter, 6 Modules
URB-EC1Unistream EtherCAT Remote IO adaptor 16 Modules
Inputs

Inputs

DigitalAnalog
URD-08008 Digital inputs (sink or source), 10RTB8-
URD-1600-8
16 Digital inputs (sink or source), 18RTB
16-
URD-3200-4
32 Digital inputs (sink or source), 40Pin
32-
URD-0400B
4 Digital inputs, 120VAC, 10RTB
4
-
URD-0400C
4 Digital inputs, 240VAC, 10RTB
4-
URD-0200E
2, 24VDC, High Speed / Encoder Inputs, 10RTD
2
-
URD-0200D
2, 5VDC, High Speed / Encoder Inputs, 10RTD
2-
URA-0400O4 Analog Current Inputs 12bit, 10RTB-4
URA-0800O8 Analog Current Inputs 12bit, 10RTB-8
URA-1600O-8
16 Analog Current Inputs 12bit, 18RTB
--16
URA-0400P4 Analog Voltage Inputs 12bit, 10RTB-4
URA-0800P8 Analog Voltage Inputs 12bit, 10RTB-8
URA-1600P-8
16 Analog Voltage Inputs 12bit, 18RTB
-16
URA-0400T4 Analog Current Inputs 16bit, 10RTB-4
URA-0800T
8 Analog Current Inputs 16bit, 10RTB
-8
URA-1600T-8
16 Analog Current Inputs 16bit, 18RTB
-16
URA-0400U4 Analog Voltage Inputs 16bit, 10RTB-4
URA-0800U
8 Analog Voltage Inputs 16bit, 10RTB
-8
URA-1600U-8
16 Analog Voltage Inputs 16bit, 18RTB
-16
URS-04RT
4 RTD / Resistance Input, 10RTB
-4
URS-08RT-2
8 RTD / Resistance Input, 20Pin
-8
URS-04TC
4 Thermocouple / mV Input, 10RTB
-4
URS-08TC-2
8 Thermocouple / mV Input, 20Pin
-8
URS-02LC-8
2 Load Cells Input, 18RTB
-2
Outputs

Outputs

TransistorRelayAnalog
URD-0004RH4 Relay Outputs, 10RTB-4-
URD-0004SK
4 Solid State Relay Outputs, 240V, 10RTB
-4-
URD-0004SM
4 Solid State Relay Outputs, 110V, 10RTB
-4-
URD-0004SN
4 Solid State Relay Outputs, 24V, 10RTB
-4-
URD-0008NH8 Digital Outputs (Sink), 10RTB8--
URD-0008NI
8 Digital Outputs (Sink), 10RTB
8--
URD-0016NG-8
16 Digital Outputs (Sink), 18RTB
16--
URD-0032NG-4
32 Digital Outputs (Sink), 40Pin
32--
URD-0008CH8 Digital Outputs (Source), 10RTB8--
URD-0008CI
8 Digital Outputs (Source), 10RTB
8--
URD-0016CG-8
16 Digital Outputs (Source), 18RTB
16--
URD-0032CG-4
32 Digital Outputs (Source), 40Pin
32--
URD-02PU
2 Pulse Outputs, 10RTB
2--
URD-02PW
2 PWM Outputs, 10RTB
2--
URD-04PW
4 PWM Outputs, 10RTB
4--
URA-0004W4 Analog Current Outputs 12bit, 10RTB--4
URA-0008W8 Analog Current Outputs 12bit, 10RTB--8
URA-0004X4 Analog Voltage Outputs 12bit, 10RTB--4
URA-0008X8 Analog Voltage Outputs 12bit, 10RTB--8
URA-0016X-8
16 Analog Voltage Outputs 12bit, 18RTB
--16
URA-0004Y4 Analog Current Outputs 16bit, 10RTB--4
URA-0008Y
8 Analog Current Outputs 16bit, 10RTB
--8
URA-0004Z4 Analog Voltage Outputs 16bit, 10RTB--4
URA-0008Z8 Analog Voltage Outputs 16bit, 10RTB
--8
URA-0016Z-8
16 Analog Voltage Outputs 16bit, 18RTB
--16
PowerURP-PS24VInput 24VDC, Output system Power 5VDC/1A
URP-C0V0V
8, 0VDC Potential Disctributor
URP-C24V24V
8, 24VDC Potential Disctributor
URP-C0V24V
4, 24VDC and 4, 0VDC Potential Disctributor
URP-PDIST
External Universal Power Distributor
URP-PSHIELD
External Universal Shield Distributor

Close

Uni-COM™ Modules

ArticleCommunication Ports
UAC-CX-01RS2
Uni-COM: 1x RS232 port
UAC-CX-01RS4Uni-COM: 1x RS485 port
UAC-CX-01CANUni-COM: 1x CANbus port

Close

Uni-Local Expansion Adapters

ArticleDescription
UAG-CX-XKP125UniStream CX IO Exp.Kit 1.25m
UAG-CX-XKP300
UniStream CX IO Exp.Kit 3m
UAG-CX-XKPLXXXXUniStream CX IO Exp.KUniStream CX IO Exp.Long Kit, lengths: 600, 1200, 1500, 2000, 3000 cm
UAG-BACK-IOADPBack I/O adapter

Close

Document Downloads

Installation Guide

File Name*Download File
US10-x5-B1Download
US10-x10-B1Download
US10-x5-TR22Download
US10-x10-TR22Download
US10-x5-T24Download
US10-x10-T24Download
US10-x5-R38Download
US10-x10-R38Download
US10-x5-T42Download
US10-x10-T42Download
US10-x5-RA28Download
US10-x10-RA28Download
US10-x5-TA30Download
US10-x10-TA30Download
Uni-COM™ CX ModulesDownload
Local Expansion AdaptersDownload

*Notes:

  • Select B for UniStream with UniCloud enabled functionality
  • Select C for UniStream Cloud series with built-in 5 years UniCloud start-up subscription with no additional payment required for this period

Technical Specifications

File Name*Download File
US10-x5-B1Download
US10-x10-B1Download
US10-x5-TR22Download
US10-x10-TR22Download
US10-x5-T24Download
US10-x10-T24Download
US10-x5-R38Download
US10-x10-R38Download
US10-x5-T42Download
US10-x10-T42Download
US10-x5-RA28Download
US10-x10-RA28Download
US10-x5-TA30Download
US10-x10-TA30Download
Uni-COM™ CX ModulesDownload
Local Expansion AdaptersDownload

*Notes:

  • Select B for UniStream with UniCloud enabled functionality
  • Select C for UniStream Cloud series with built-in 5 years UniCloud start-up subscription with no additional payment required for this period

UniStream Remote I/O- User Manual

File NameDownload File
UniStream Remote I/O- User ManualDownload

2D Drawings

File NameDownload File
UniStream 10.1" Built-in - 2DDownload

3D Drawings

File NameDownload File
UniStream 10.1" Built-in- 3DDownload
Success story
Coating Systems International manufactures equipment to apply pill coats to pharmaceutical tablets...
30/10/2016
read more
UniStream offers one unit and one programming environment...
06/04/2016
read more
The biggest advantage was the intuitive, integrated UniLogic® environment for ladder and HMI programming...
11/02/2016
read more
