UniStream® 10.4"- programmable logic controller with color Multi-touch HMI

Powerful Programmable Logic Controller (PLC) with incredible HMI features and a built-in webserver. A completely modular and scalable hardware – backed by the most efficient programming software you have ever used. Execute high-end projects – on time and within budget.

Available in UniStream 10.4″ Cloud series – a PLC with built-in, no-cost cloud services. You simply connect the PLC to ‘UniCloud’, Unitroncis cloud service, design a no-code dashboard, and go live in less than 30 minutes!

Programmable Logic Controller + Superb HMI Touchscreen Overview

PLC

  • Auto-tune PID, up to 64 independent loops
  • Recipes & data logging via data tables & sampling
  • MicroSD card – log, backup, clone & more
  • Function Blocks & Structs
  • Trends

HMI

  • Highly quality touch screen
  • Multi-language display
  • Built-in Alarm Screens
  • Media support: Video, Audio and PDF viewer
  • Multi-level password protection – easy and fast

Communication

  • CANbus
  • Ethernet TCP/IP
  • RS485
  • USB host
  • Mini USB for programming
  • Add-on port: Up to 8 RS232 (Using UAC-02RS2)
  • Add-on port: Up to 4 RS232 + 4 RS485 (Using UAC-02RSC)

         Protocols:

  • MQTT Client
  • EtherNet/IP
  • MODBUS: Serial & TCP/IP
  • CANopen
  • CANlayer2
  • UniCAN
  • SNMP
  • BACnet
  • KNX and M-Bus via gateway
  • Message Composer for 3rd party protocols

         General Features: SQL Client, Web Server, FTP server & client, E-mail & SMS, Remote access via VNC, 3G Modem                                                             support

I/O

  • Expand up to 2048 I/Os
  • Expand remotely: via UniStream Remote I/O
  • I/O options include digital, analog, high-speed, temperature & weight measurement. See table below:

UniLogic® Software for UniStream®

All-in-One – program all aspects of your application:

  • Code Ladder
  • Design beautiful HMI screens and Web pages
  • Configure hardware
  • Set up and implement communications
  • Build-it-once, create & reuse Ladder functions, screens, webpages and more

New! UniCloud.

The Complete, No-Code, IIoT Cloud Platform for Unitronics Controllers.

No cloud development skills needed!

Go Cloud without changing a line in your control program!

Product Details

UniStream® 10.4"
I/O Options
Number of I/Os per CPU (onboard, local and remote)Up to 2,048

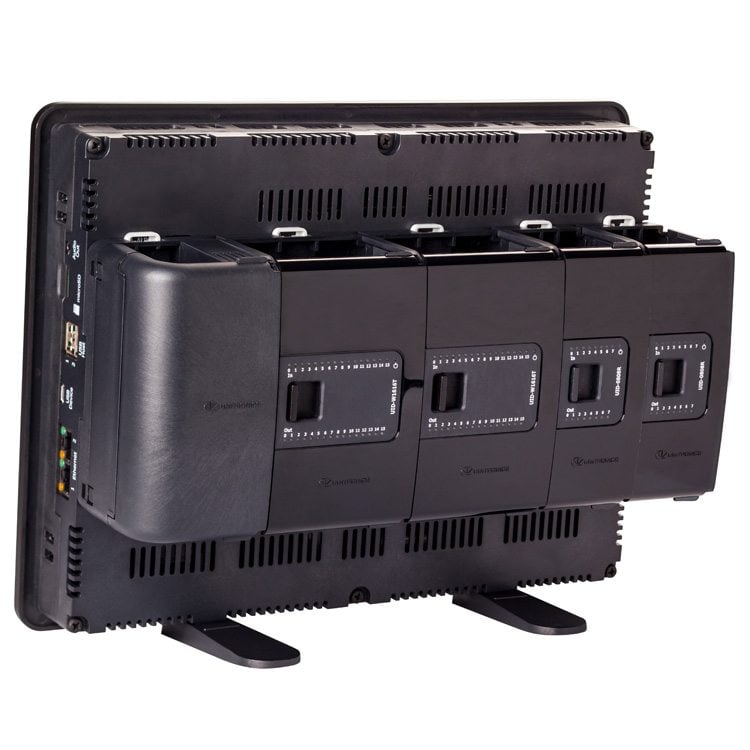

Onboard Uni-I/O™ or Uni-COM™ Modules (all-in-one configuration)Add up to 5 slim or 3 wide modules 1
Local Uni-I/O™ Modules Use Local Expansion Adapters to add up to 80 slim modules or 50 wide modules 1
Remote I/O ExpansionUse EX-RC1 adapters to further extend the number of I/Os 4
Bit Operation0.13 µs
Ladder Memory1 MB
External MemorymicroSD and USB Flash drive (up to 32GB)
VideoShow MPEG-4 videos on the HMI screen
AudioPlay MP3 audio files using internal speaker or use the audio-out jack for external speakers
Power Supply12/24VDC
Backup BatteryCR2032, Back-up RTC values, system data and retained tags
Communication

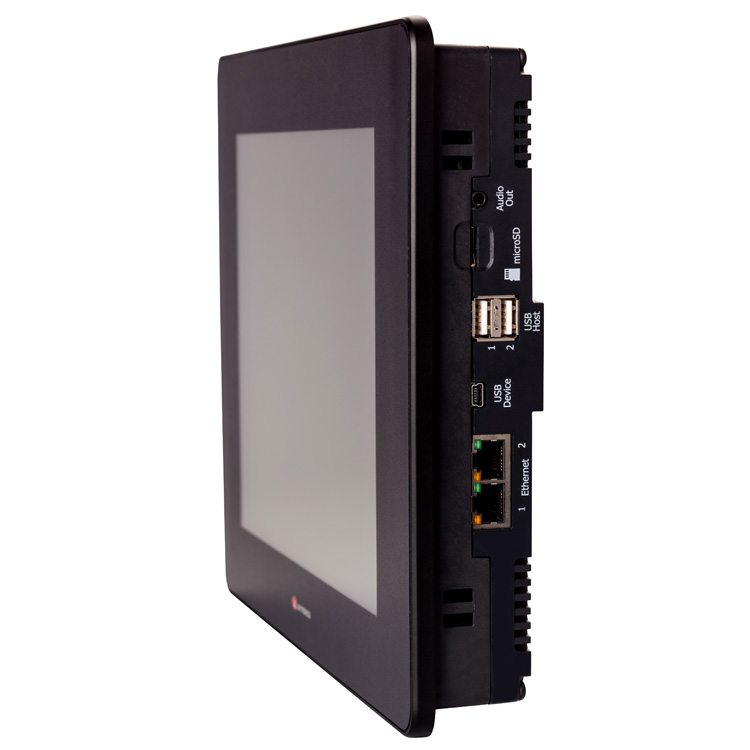

Ports2 Ethernet • 1 RS485 • 1 CANbus •2 USB host ports • 1 USB device port for programming
ProtocolsMODBUS, EtherNet/ IPTM, CANopen, SNMP, FTP, BACnet2, RTSP, VNC, UniCAN, GSM (SMS, GPRS), KNX, Message Composer for 3rd party protocols
HMI Panel

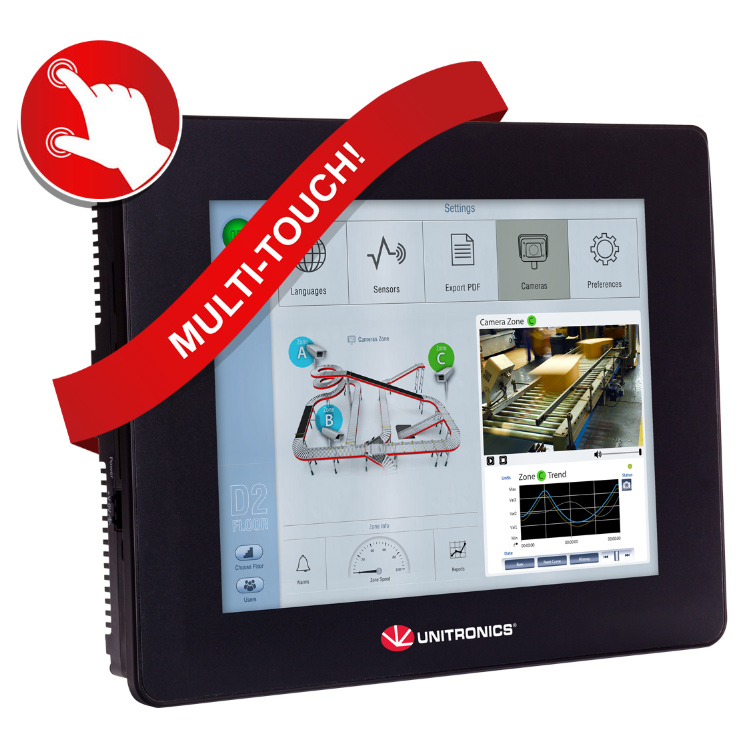

TypeUSP-104-M10: Capacitive, Multi-Touch, 5 fingers HMI Panel
USP-104-B10: TFT, LCD, Touch HMI Panel
Size10.4" (4:3)
Resolution800x600 (SVGA)
Viewing Area
Height x Width (mm)		211.2 x 158.4
Colors65,536 (16bit)
Display Backlight IlluminationWhite LED
Environment
ProtectionIP66, IP65, NEMA4X when panel-mounted 3
Operating Temperature-20°C to 55°C (-4°F to 131°F)
*Notes:
  1. 1 wide I/O modules width = 1.5 slim I/O modules width – see table “Digital Uni-I/O™ Modules”
  2. Using a gateway model: GW-BAC1
  3. UniStream™ complies with IP66 and NEMA4X only with the audio seal installed, please refer to the installation guide of the HMI panel for information.
  4. EX-RC1: via CANbus integrate standard Unitronics’ I/O modules at distances of up to 1000m.

*This page provides a general overview of Unitronics products.

For more details, please check the complete technical specifications for each product, located at the end of the page.

Close

Uni-I/O™ Modules

InputsOutputs
Expansion Modules
article		Digital (Isolated)HSC/Shaft-encoder 4AnalogTemperature
Measurement		Weight
Measurement		Transistor (Isolated) 5PWM/HSO 5RelayAnalogOperating
Voltage
Digital Modules
(Isolated)		UID-160016
Sink/Source		NoneNoneNoneNoneNoneNoneNoneNone24VDC
UID-0808T8
Sink/Source		NoneNoneNoneNone8
Source(pnp)		NoneNoneNone24VDC
UID-W1616T 316
Sink/Source		NoneNoneNoneNone16
Source(pnp)		NoneNoneNone24VDC
UID-0808THS 18
Sink/Source		2
250kHz 32-bit		NoneNoneNone8
Source(pnp)		2 2
250kHz
2
3kHz		NoneNone24VDC
UID-0016TNoneNoneNoneNoneNone16
Source(pnp)		NoneNoneNone24VDC
UID-0808R8
Sink/Source		NoneNoneNoneNoneNoneNone8None24VDC
UID-W1616R 316
Sink/Source		NoneNoneNoneNoneNoneNone16None24VDC
UID-0016RNoneNoneNoneNoneNoneNoneNone16None24VDC
Analog and TemperatureUIA-0006NoneNoneNoneNoneNoneNoneNoneNone6
0-10V
14-bit
±10V
13-bit+sign
0-20mA, 4-20mA
13-bit		24VDC
UIA-0402NNoneNone4
0-10V, 0-20mA, 4-20mA
13-bit
NoneNoneNoneNoneNone2
0-10V
14-bit
±10V
13-bit+sign
0-20mA, 4-20mA
13-bit		24VDC
UIA-0800NNoneNone8
0-10V, 0-20mA, 4-20mA
13-bit
NoneNoneNoneNoneNoneNoneNot relevant
UIA-0800NHNoneNone8
0-20V, 0-20mA, 4-20mA
With HART communication
NoneNoneNoneNoneNoneNoneNot relevant
UIS-04PTNNoneNoneNone4
PT100/NI100/NI120
NoneNoneNoneNoneNoneNot relevant
UIS-04PTKNNoneNoneNone4
PT1000/NI1000/NI1200
NoneNoneNoneNoneNoneNot relevant
UIS-08TCNoneNoneNone8 (Isolated)
Thermocouple7		NoneNoneNoneNoneNone24VDC
Digital/Analog ModulesUIS-WCB1 1 , 3 10
Sink/Source		2
10kH z 32 bit		2 (Isolated)
0-10V, 0-20mA, 4-20mA
14-bit		2 (Isolated)
Thermocouple, PT100/NI100/NI120
None2 (Not Isolated)
Sink (npn)		2
250kHz		82
0-10V
14-bit
.±10V
13-bit+sign
0-20mA, 4-20mA
13-bit		24VDC
UIS-WCB2 1 , 3 10
Sink/Source		2
10kH z 32 bit		2 (Isolated)
0-10V, 0-20mA, 4-20mA
14-bit		2 (Isolated)
Thermocouple, PT100/NI100/NI120
None8
Source (pnp)
2 (Not Isolated)
Sink (npn)		2
250kHz
(Sink outputs only)		None2
0-10V
14-bit
.±10V
13-bit+sign
0-20mA, 4-20mA
13-bit		24VDC
*Notes:
  1. This module  utilizes two high speed blocks that can each be assigned either to the inputs or to the outputs.
  2. 2 outputs are high speed, up to 250KHz , and may function as normal or high-speed PWM outputs (same frequency and different duty-cycles). 2 outputs are normal speed, and may function as normal-speed PWM outputs (same frequency but different duty-cycles).
  3. 1 wide I/O modules width = 1.5 slim I/O modules width
  4. Note that the high-speed inputs are included in the total number of digital inputs.
  5. Note that the high-speed outputs are included in the total number of digital outputs.
  6. Not isolated.

*This page provides a general overview of Unitronics products.

For more details, please check the complete technical specifications for each product, located at the end of the page.

Close

Uni-Local Expansion Adapters

ArticleDescription
UAG-XK125Short Range Kit, 125 cm
UAG-XKP125Short Range + embedded Power Supply Kit, 125 cm
UAG-XK300Short Range Kit, 300 cm
UAG-XKP300Short Range Kit + embedded Power Supply, 300 cm
UAG-XKPLXXXXLong Range + embedded Power Supply, lengths: 600, 1200, 1500, 2000, 3000cm

Close

Uni-COM™ Communication Modules

Article1Communication Ports
UAC-01RS21x RS232 port
UAC-02RS22x RS232 port
UAC-02RSC1x RS232 port and
1x RS485 port
*Notes:
  1. Add-on Modules, I/O and COM: the total number of modules, both I/O and COM that you can snap onboard an HMI panel is limited by the size of the panel.

Close

UniStream Remote I/O

ArticleDescription
AdapterURB-TCPUniStream Remote IO Eth. Adapter
URB-TCP2UniStream Remote IO Adapter, 6 Modules
URB-EC1Unistream EtherCAT Remote IO adaptor 16 Modules
Inputs

Inputs

DigitalAnalog
URD-08008 Digital inputs (sink or source), 10RTB8-
URD-1600-8
16 Digital inputs (sink or source), 18RTB
16-
URD-3200-4
32 Digital inputs (sink or source), 40Pin
32-
URD-0400B
4 Digital inputs, 120VAC, 10RTB
4
-
URD-0400C
4 Digital inputs, 240VAC, 10RTB
4-
URD-0200E
2, 24VDC, High Speed / Encoder Inputs, 10RTD
2
-
URD-0200D
2, 5VDC, High Speed / Encoder Inputs, 10RTD
2-
URA-0400O4 Analog Current Inputs 12bit, 10RTB-4
URA-0800O8 Analog Current Inputs 12bit, 10RTB-8
URA-1600O-8
16 Analog Current Inputs 12bit, 18RTB
--16
URA-0400P4 Analog Voltage Inputs 12bit, 10RTB-4
URA-0800P8 Analog Voltage Inputs 12bit, 10RTB-8
URA-1600P-8
16 Analog Voltage Inputs 12bit, 18RTB
-16
URA-0400T4 Analog Current Inputs 16bit, 10RTB-4
URA-0800T
8 Analog Current Inputs 16bit, 10RTB
-8
URA-1600T-8
16 Analog Current Inputs 16bit, 18RTB
-16
URA-0400U4 Analog Voltage Inputs 16bit, 10RTB-4
URA-0800U
8 Analog Voltage Inputs 16bit, 10RTB
-8
URA-1600U-8
16 Analog Voltage Inputs 16bit, 18RTB
-16
URS-04RT
4 RTD / Resistance Input, 10RTB
-4
URS-08RT-2
8 RTD / Resistance Input, 20Pin
-8
URS-04TC
4 Thermocouple / mV Input, 10RTB
-4
URS-08TC-2
8 Thermocouple / mV Input, 20Pin
-8
URS-02LC-8
2 Load Cells Input, 18RTB
-2
Outputs

Outputs

TransistorRelayAnalog
URD-0004RH4 Relay Outputs, 10RTB-4-
URD-0004SK
4 Solid State Relay Outputs, 240V, 10RTB
-4-
URD-0004SM
4 Solid State Relay Outputs, 110V, 10RTB
-4-
URD-0004SN
4 Solid State Relay Outputs, 24V, 10RTB
-4-
URD-0008NH8 Digital Outputs (Sink), 10RTB8--
URD-0008NI
8 Digital Outputs (Sink), 10RTB
8--
URD-0016NG-8
16 Digital Outputs (Sink), 18RTB
16--
URD-0032NG-4
32 Digital Outputs (Sink), 40Pin
32--
URD-0008CH8 Digital Outputs (Source), 10RTB8--
URD-0008CI
8 Digital Outputs (Source), 10RTB
8--
URD-0016CG-8
16 Digital Outputs (Source), 18RTB
16--
URD-0032CG-4
32 Digital Outputs (Source), 40Pin
32--
URD-02PU
2 Pulse Outputs, 10RTB
2--
URD-02PW
2 PWM Outputs, 10RTB
2--
URD-04PW
4 PWM Outputs, 10RTB
4--
URA-0004W4 Analog Current Outputs 12bit, 10RTB--4
URA-0008W8 Analog Current Outputs 12bit, 10RTB--8
URA-0004X4 Analog Voltage Outputs 12bit, 10RTB--4
URA-0008X8 Analog Voltage Outputs 12bit, 10RTB--8
URA-0016X-8
16 Analog Voltage Outputs 12bit, 18RTB
--16
URA-0004Y4 Analog Current Outputs 16bit, 10RTB--4
URA-0008Y
8 Analog Current Outputs 16bit, 10RTB
--8
URA-0004Z4 Analog Voltage Outputs 16bit, 10RTB--4
URA-0008Z8 Analog Voltage Outputs 16bit, 10RTB
--8
URA-0016Z-8
16 Analog Voltage Outputs 16bit, 18RTB
--16
PowerURP-PS24VInput 24VDC, Output system Power 5VDC/1A
URP-C0V0V
8, 0VDC Potential Disctributor
URP-C24V24V
8, 24VDC Potential Disctributor
URP-C0V24V
4, 24VDC and 4, 0VDC Potential Disctributor
URP-PDIST
External Universal Power Distributor
URP-PSHIELD
External Universal Shield Distributor

Close

IO-Link Masters and Hubs Modules

Part NumberDescription
ULK-EIP-4AP6IO-LINK MASTER,4A,EIP,IP67
ULK-EIP-8AP6IO-LINK MASTER,8A,EIP,IP67
ULK-EIP-4A4BP6IO-LINK MASTER,4A4B,EIP,IP67
ULK-1616P-M2P6IO-LINK HUB,16I/O,PN,M12,IP67
ULK-0808P-M8P6IO-LINK HUB,8I/O,PN,M8,IP67
ULK-1616P2-M2P6IO-LINK HUB,16I/O,PN,2A,M12,IP67
ULK-0808AIO-M2P6IO-LINK HUB,8AI/O,PN,M12,IP67

Close

Document Downloads

Installation Guide

File Name*Download File
CPU USC-P-B10Download
HMI Panel USP-104-x10*Download

*Notes:

  • Select B for UniStream with UniCloud enabled functionality
  • Select C for UniStream Cloud series with built-in 5 years UniCloud start-up subscription with no additional payment required for this period

Technical Specifications

File Name*Download File
CPU USC-P-B10Download
HMI Panel USP-104-x10*Download

*Notes:

  • Select B for UniStream with UniCloud enabled functionality
  • Select C for UniStream Cloud series with built-in 5 years UniCloud start-up subscription with no additional payment required for this period

UniStream Remote I/O - User Manual

File NameDownload File
UniStream Remote I/O- User ManualDownload

2D Drawings

File NameDownload File
USP-104-B10Download
USC-P-B10Download

3D Drawings

File NameDownload File
USP-104-B101Download
USC-P-B101Download
Success story
The biggest advantage was the intuitive, integrated UniLogic® environment for ladder and HMI programming...
11/02/2016
read more
“Unitronics offers very fast technical support, intuitive programming environment, and covers all requested functionalities.”
23/05/2017
read more
UniStream offers one unit and one programming environment...
06/04/2016
read more
Main advantage was the big 15-inch HMI display for easy operator control which is very important in such applications...
07/04/2016
read more
Unitronics is a very reliable partner in selling PLCs. The cost/performance ratio and the great support are very important to win customers...
07/04/2016
read more

What does UniStream® 10.4" look like?

Watch the UniStream 10.4″ unpacking video.
