Vision1210™- PLC Controller With High Resolution HMI Touchscreen

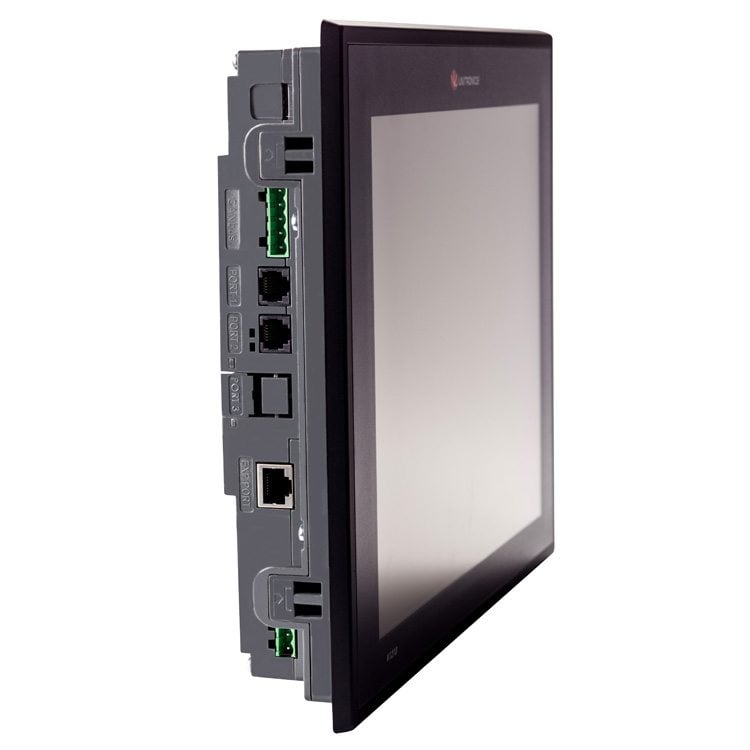

Advanced PLC controller from the back- big & high resolution color 12.1″  touchscreen. Snap-in I/Os for an All-in-One controller; expands up to 1000 I/Os.

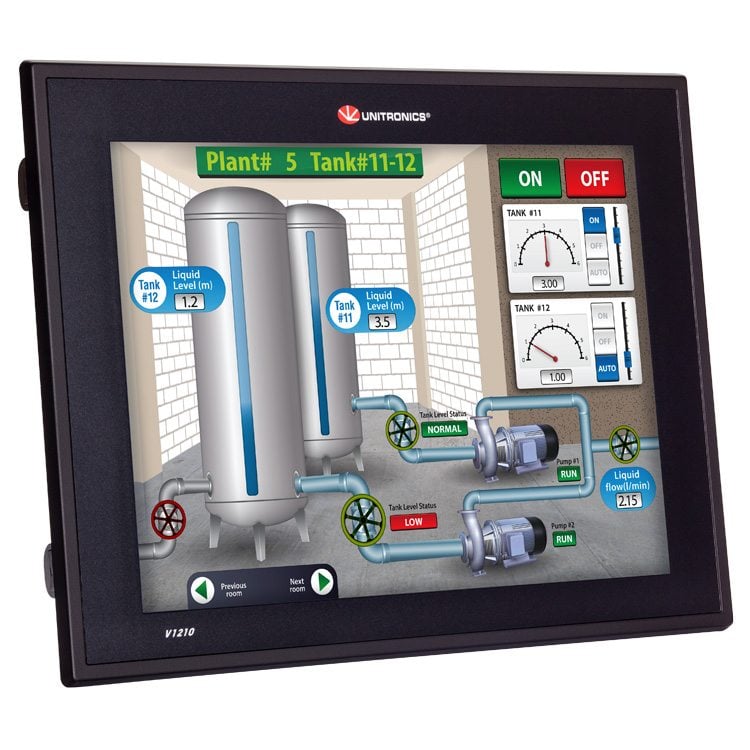

PLC Controller + Built-in Incredible HMI Touchscreen Overview

  • Auto-tune PID, up to 24 independent loops
  • Recipe programs and data logging via data tables
  • MicroSD card – log, backup, clone & more
  • Function Blocks
  • High quality touchscreen
  • Multi-language display
  • Built-in Alarm Screens
  • Mini USB for programming
  • CANbus
  • Isolated RS485/RS232
  • 1 port may be added for an additional Serial/Ethernet

         Protocols:

  • MODBUS TCP
  • SNMP*
  • CANopen, CANlayer2, UniCAN
  • BACnet, KNX and M-Bus via gateway
  • FB Protocol: for any 3rd party protocol

          General Features: Web server, E-mail & SMS, Remote access utilities, 3G Modem support

Visilogic™ Software for Vision1210™

All-in-One programming environment. Simple, fast development for both Ladder and HMI applications.

  • Develop your PLC and HMI applications in one environment
  • Configure hardware & communications
  • Establish modem and data communications
  • Test and debug your programs
  • Software Utilities Suite: remote access and data management tools



Product Details

Vision1210™
I/O Options

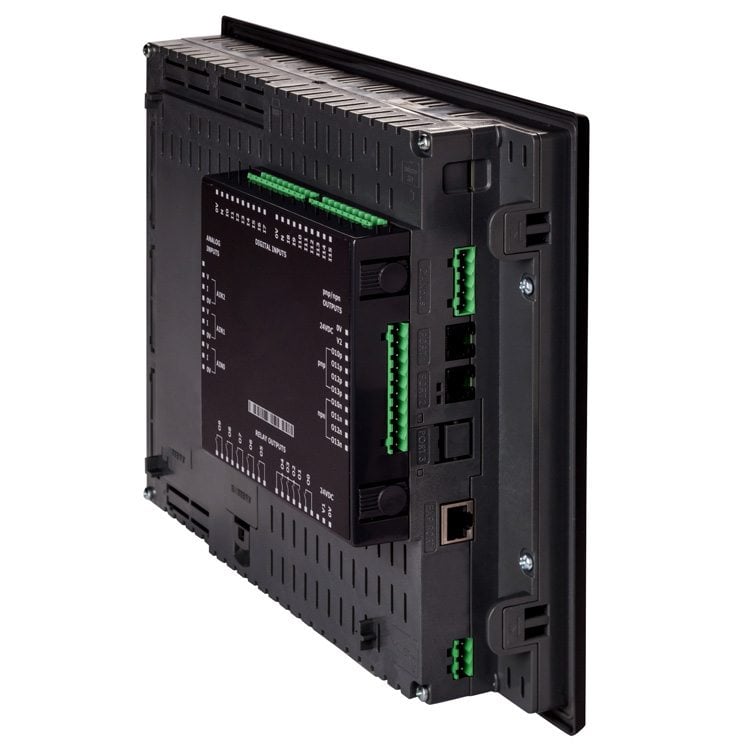

Snap-in I/O ModulesPlug these modules directly into the back of the Vision unit to create a self-contained PLC with up to 62 I/Os. Inputs may include Digital, Analog, and Temperature measurement. Outputs may include Transistor, Relay, or Analog (sold separately)
I/O ExpansionLocal or Remote I/Os may be added via expansion port or via CANbus. Expand up to 1000 I/Os — see I/O Expansion Modules below
Program
Application MemoryApplication Logic: 2MB · Images: 40MB · Fonts: 1MB
Scan Time9µsec per 1K of typical application
Memory Operands8192 coils, 4096 registers, 512 long integers (32-bit), 256 double words (32-bit unsigned), 64 floats, 384 timers (32-bit), 32 counters. Additional non-retainable operands: 1024 X-bits, 512 X-integers, 256 X-long integers, 64 X-double words
Data Tables120K dynamic RAM data (recipe parameters, datalogs, etc.), up to 256K fixed data
SD Card (Micro)Store data logs, Alarm History, Data Tables, Trend data, export to Excel • Back up Ladder, HMI & OS, clone PLCs
USB 1 USB programming port (Mini-B)
Enhanced FeaturesTrends: graph any value and display on HMI • Built-in Alarm management system• String Library: instantly switch HMI language
Operator Panel
TypeTFT LCD
Display Backlight IlluminationWhite LED
Colors65,536 colors, 16 bit resolution · Brightness- Adjustable via touchscreen or software
Display Resolution & Size800 x 600 pixels (SVGA), 12.1”
TouchscreenResistive, Analog
KeysVirtual Keypad
General
Power Supply12/24VDC
Battery 7 years typical at 25°C, battery back-up for all memory sections and RTC
ClockReal-time clock functions (date and time)
Environment IP66/IP65/NEMA4X (when panel mounted)
StandardCE, UL  Many of our products are also  UL Class 1 Div 2 and  GOST certified  -  please contact Unitronics

Close

Snap-in I/O Modules

 InputsOutputs
Snap-in I/O
Modules
Digital (isolated) 1
HSC/Shaft-encoder1 AnalogTemperature
Measurement
Transistor (isolated)2 PWM/HSO2 RelayAnalogOperating
Voltage
V200-18-E1B16
pnp/npn

2
10kHz 32-bit
3
0-10 V, 0-20mA, 4-20mA
10-bit
None4
pnp/npn
2
pnp 0.5kHz
npn 50kHz
10None24VDC
V200-18-E2B16
pnp/npn
2
10kHz 32-bit
2
0-10 V, 0-20mA, 4-20mA
10-bit
None4
pnp/npn
2
pnp 0.5kHz
npn 50kHz
102
0-10 V,0-20mA,4-20mA
12-bit
24VDC
V200-18-E3XB18
pnp/npn
2
10kHz 32-bit
4 (Isolated)
Thermocouple, PT100, 0-10V, 0-20mA, 4-20mA
14-bit
2
pnp/npn
2
pnp 0.5kHz
npn 50kHz
154 (Isolated)
0-10 V, 4-20mA
12-bit
24VDC
V200-18-E4XB18
pnp/npn
2
10kHz 32-bit
4 (Isolated)
Thermocouple, PT100, 0-10V, 0-20mA, 4-20mA
14-bit
15
pnp
2
npn/pnp
2
pnp 0.5kHz
npn 50kHz
None4 (Isolated)
0-10 V, 4-20mA
12-bit
24VDC
V200-18-E5B18
pnp/npn
2
10kHz 32-bit
3
0-10 V,0-20mA,
4-20mA
10-bit
None15
pnp
2
npn/pnp
2
pnp 0.5kHz
npn 50kHz
NoneNone24VDC
V200-18-E6B18
pnp/npn
2
10kHz 32-bit
2
Thermocouple, PT100, 0-10V, 0-20mA, 4-20mA
14-bit
3
0-10V, 0-20mA, 4-20mA
10-bit

2
pnp/npn
2
pnp 0.5kHz
npn 50kHz
152 (Isolated)
0-10 V, 4-20mA
12-bit
24VDC
V200-18-E46B3 18
pnp/npn
2
10kHz 32-bit
6
0-10 V,0-20mA,4-20mA
14-bit
3
0-10 V,0-20mA,4-20mA
10-bit
None2
pnp/npn
2
pnp 0.5kHz
npn 100kHz
152 (Isolated)
0-10 V, 4-20mA
12-bit
24VDC
V200-18-E62B3 30
pnp/npn
2
50kHz 32-bit
2
0-10 V,0-20mA,4-20mA
10-bit
None28
pnp
2
npn/pnp
2
pnp 0.5kHz
npn 100kHz
NoneNone24VDC
*Notes:
  1. The total number of digital inputs listed includes high-speed inputs.
  2. The total number of digital outputs listed includes high-speed outputs.
  3. Not yet UL certified

*This page provides a general overview of Unitronics products.

For more details, please check the complete technical specifications for each product, located at the end of the page.

Close

I/O Expansion Modules

InputsOutputs
Expansion ModulesDigital 5HSC 5AnalogTemperature
Measurement
Weight
Measurement
Transistor6 PWM/HSO 6RelayAnalogOperating
Voltage
Digital IO-DI8-TO88
pnp/npn
1
5kHz 16-bit
NoneNoneNone8
pnp
NoneNoneNone24VDC 9
IO-DI8-RO48
pnp/npn
1
5kHz 16-bit
NoneNoneNoneNoneNone4None24VDC 9
IO-DI8-RO88
pnp/npn
1
5kHz 16-bit
NoneNoneNoneNoneNone8None24VDC 9
EX90-DI8-RO8 38
pnp
1
5kHz 16-bit
NoneNoneNoneNoneNone8None24VDC
IO-DI1616
pnp/npn
1
5kHz 16-bit
NoneNoneNoneNoneNoneNoneNone24VDC 9
IO-TO16NoneNoneNoneNoneNone16
pnp
NoneNoneNone24VDC
IO-RO8NoneNoneNoneNoneNoneNoneNone8None24VDC 9
IO-RO16NoneNoneNoneNoneNoneNoneNone16None24VDC 9
IO-DI8ACH8 ACNoneNoneNoneNoneNoneNoneNoneNone110/220 VAC
Analog, Temperature and
Weight/Strain Measurements
IO-AI4-AO2NoneNone4
0-10V, 0-20mA, 4-20mA
12-bit
NoneNoneNoneNoneNone2
±10V
12-bit+sign,
0-20mA, 4-20mA
12-bit
24VDC
IO-PT400NoneNoneNone4
PT100/NI100/NI120
NoneNoneNoneNoneNoneNot relevant
IO-PT4KNoneNoneNone4
PT1000/NI1000
NoneNoneNoneNoneNoneNot relevant
IO-AO6XNoneNoneNoneNoneNoneNoneNoneNone6 (Isolated)
0-10V, 0-20mA, 4-20mA
12-bit
24VDC
IO-LC1 1
pnp
NoneNoneNone1
Loadcell / Strain gauge
2
pnp
NoneNoneNone24VDC
IO-LC3 1
pnp
NoneNoneNone3
Loadcell / Strain gauge
2
pnp
NoneNoneNone24VDC
IO-ATC8NoneNone8
Thermocouple, 0-10V, 0-20mA, 4-20mA
14-bit
NoneNoneNoneNoneNoneNot relevant
IO-AI8NoneNone8
0-10V, 0-20mA, 4-20mA
14-bit
NoneNoneNoneNoneNoneNoneNot relevant
XL Digital/Analog IO-D16A3-RO1616
pnp/npn
2
30kHz 16/32-bit 8
3
0-20mA, 4-20mA
10-bit
NoneNoneNoneNone16None24VDC
IO-D16A3-TO16 16
pnp/npn
1
30kHz 16/32-bit 8
3
0-20mA, 4-20mA
10-bit
NoneNone15
pnp,
1
pnp/npn
1
pnp 0.5kHz
npn 50kHz
NoneNone24VDC
EX-D16A3-RO8716
pnp/npn
2
30kHz 16/32-bit 8
3
0-20mA, 4-20mA
10-bit
NoneNoneNoneNone8None24VDC
EX-D16A3-TO16716
pnp/npn
1
30kHz 16/32-bit 8
3
0-20mA, 4-20mA
10-bit
NoneNone15
pnp
1
pnp/npn
1
pnp 0.5kHz
npn 50kHz
NoneNone24VDC
High-speed Remote I/O ModuleEXF-RC15 2,4
,10
9
pnp/npn
3
200kHz 32-bit
NoneNoneNone4
npn
4
(up to 3 PTO)
2None24VDC
*Notes:
  1. Number of supported I/Os & I/O modules varies according to module
  2. The EXF-RC15 functions as a node in a Vision UniCAN network and connects to the Vision controller via CANbus and programmed in VisiLogic. The EXF-RC15 cannot be extended as regular I/O unit.
  3. The EX90 is housed in an open casing. Only one EX90 can be connected per PLC, as a single expansion module; Expansion adapter not required.
  4. Supported by Vision series. Not supported by M91 series.
  5. The total number of digital inputs listed includes high-speed inputs.. Example: the IO-D16A3-TO16 offers a total of 16 pnp/npn inputs. You can configure I4 as a HSC and I5 as a Counter reset; this reduces the available number of digital inputs to 14.
  6. The total number of digital outputs listed includes high-speed outputs. Example: the IO-D16A3-TO16 offers a total of 16 transistor outputs. You can configure 1 to High-speed output, reducing the number of available digital outputs to 15.
  7. Functions as local adapter. Can support up to 7 I/O modules
  8. 16-bit or 32-bit, depending on the PLC
  9. Also available as 12VDC – contact us for part number
